Thermowell Bars

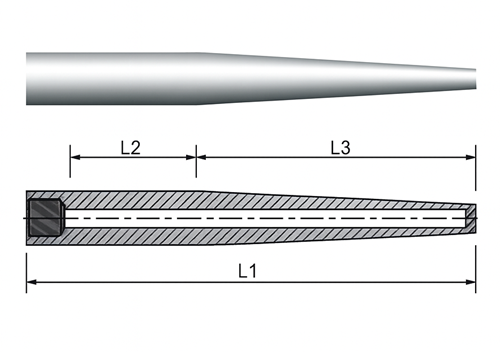

Bar Stock Thermowell
Thermowell Bars
Bar Stock Thermowell
Internal Thread | Part No. | L1 | L2 | L3 |
M18x1.5 | TW-K-850-1 | 140 | 50 | 65 |
M18x1.5 | TW-K-850-2 | 200 | 50 | 125 |
M18x1.5 | TW-K-850-3 | 200 | 110 | 65 |
M18x1.5 | TW-K-850-4 | 260 | 110 | 125 |
M18x1.5 | TW-K-850-5 | 200 | 125 | 65 |

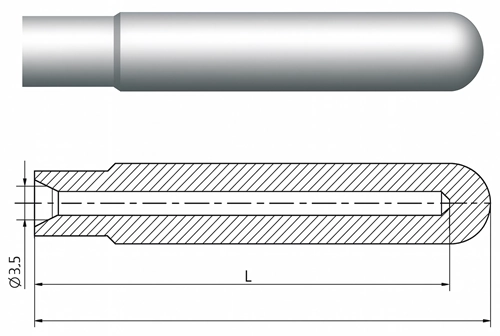

Thermowells (”d” Type Thermowells)
A | Part No. | L | Drilled Dia | Drilled Length |
11.80 | TW-K-602-1 | 90 | 3.50 | 80 |
12.00 | TW-K-602-2 | 90 | 3.50 | 80 |
17.80 | TW-K-602-3 | 200 | 7.00 | 190 |
18.00 | TW-K-602-4 | 200 | 9.00 | 190 |

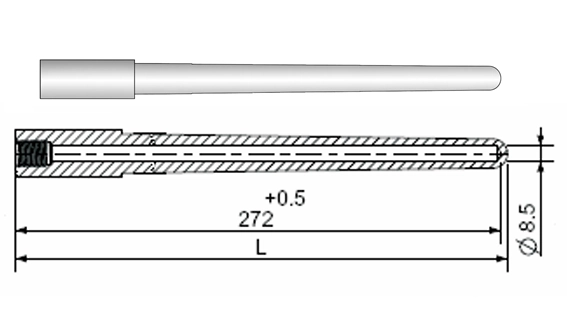

Thermowells (”d” Type Thermowells)
Internal Thread | Part No. | L1 | Drilled Dia | Drilled Length |
1/2″BSP | KPC-858 | 276 | 8.5 | 272 |
1/2″BSP | KPC-859 | 376 | 50 | 372 |
