SS Plug
Hex plug
SS Plug
Hex Plug

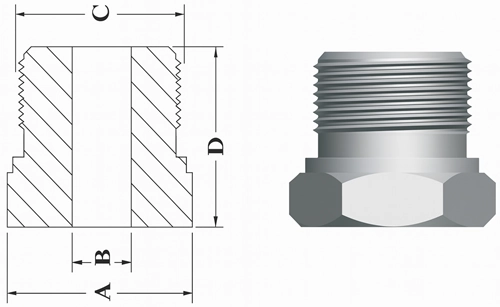

Part No. | Plug Size | A | B | C | D |
KPC-18-BSPP-PLG-316 | 1/8″BSPP Plug w/3/16″ bore | 14.2 | 4.8 | 1/8″BSP | 17.5 |
KPC-12-BSPP-PLG-3 | 1/2″BSPP Plug w/3mm bore | 27 | 3 | 1/2″BSP | 24.5 |
KPC-12-BSPP-PLG-6 | 1/2″BSPP Plug w/6mm bore | 27 | 6 | 1/2″BSP | 24.5 |
KPC-12-BSPP-PLG-13 | 1/2″BSPP Plug w/13mm bore | 27 | 13 | 1/2″BSP | 24.5 |
KPC-34-BSPP-PLG-12 | 3/4″BSPP Plug w/1/2″ bore | 32 | 12 | 3/4″BSP | 28.5 |
KPC-38-BSPP-PLG-5 | 3/8″BSPP Plug w/5mm bore | 22 | 5 | 3/8″BSP | 25 |

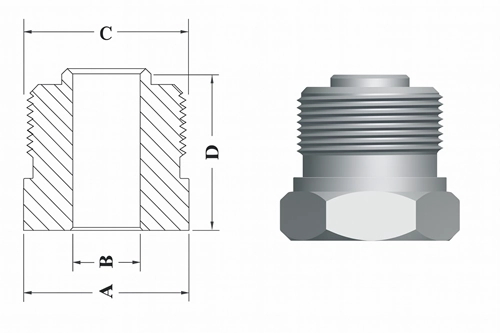

Plugs With Bore With S.f With Lip
Part No. | Plug Size | A | B | C | D |
KPC-18-BSPP-PLG-316 | 1/8″BSPP Plug w/3/16″ bore | 14.2 | 4.8 | 1/8″BSP | 20.5 |
KPC-12-BSPP-PLG-3 | 1/2″BSPP Plug w/3mm bore | 27 | 3 | 1/2″BSP | 29.5 |
KPC-12-BSPP-PLG-6 | 1/2″BSPP Plug w/6mm bore | 27 | 6 | 1/2″BSP | 29.5 |
KPC-12-BSPP-PLG-13 | 1/2″BSPP Plug w/13mm bore | 27 | 13 | 1/2″BSP | 29.5 |
KPC-34-BSPP-PLG-12 | 3/4″BSPP Plug w/1/2″ bore | 32 | 12 | 3/4″BSP | 31.5 |
KPC-38-BSPP-PLG-5 | 3/8″BSPP Plug w/5mm bore | 22 | 5 | 3/8″BSP | 28 |
