Rubber Components
Rubber Mounting
Rubber Components
Rubber Mounting

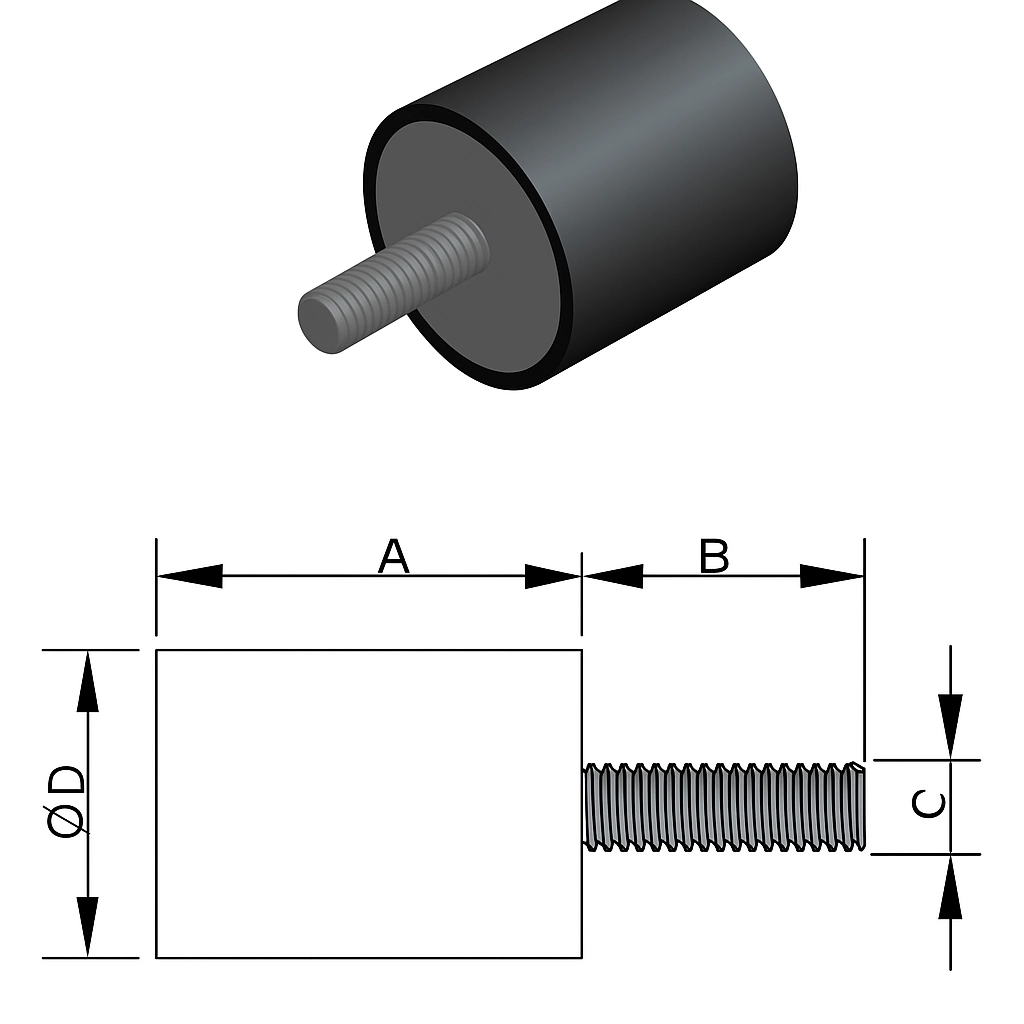

Stud Mounts / Male – Cylindrical Gummi-Metall-Puffer / Aussengewinde – Zylindrisch
PART.NO. | A | B | øD | C |
36.8100 | 20 | 22 | 40 | M8 |
36.8116 | 25 | 20 | 40 | M8 |
Stud Mounts / Male – Cylindrical Gummi-Metall-Puffer / Aussengewinde – Zylindrisch
| PART.NO. | A | B | øD | C |
| 36.8101 | 10 | 22 | 40 | M8 |
| 36.8110 | 10 | 20 | 50 | M10 |
| 36.8118 | 20 | 20 | 50 | M10 |
| 36.8121 | 20 | 25 | 50 | M10 |
Stud Mounts / Male – Cylindrical Gummi-Metall-Puffer / Aussengewinde – Zylindrisch
DRWG.NO. ART.NO. | A | B | øD | C | |
KPC-4339 | 36.8102 | 25 | 18 | 25 | M6 |
KPC-4932 | 36.8117 | 30 | 27 | 50 | M10 |
