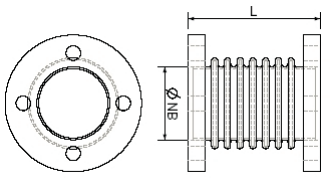

Metal-Expansion Joints with fix flanges(PN-10):-

Metal-Expansion Joints with fix flanges(PN-16):-

Sr.No	PART.NO.	SIZE (inch)	L mm
1	98.1101	2”	150
2	98.1102	2.1/2”	150
3	98.1103	3”	150
4	98.1104	4	150
5	98.1105	5”	150
6	98.1106	6”	150
7	98.1107	8”	150
8	98.1108	10”	200
9	98.1109	12”	200
10	98.1110	14”	200
11	98.1111	16”	300
12	98.1112	18”	300
13	98.1113	20”	300
14	98.1114	24”	300
15	98.1115	26”	200
16	98.1116	28”	200
17	98.1118	30”	200
18	98.1119	32”	200
19	98.1120	34”	200
20	98.1121	40”	200

Sr.No	PART.NO.	SIZE (inch)	L mm
1	98.1201	2”	150
2	98.1202	2.1/2”	150
3	98.1203	3”	150
4	98.1204	4	150
5	98.1205	5”	150
6	98.1206	6”	150
7	98.1207	8”	150
8	98.1208	10”	200
9	98.1209	12”	200
10	98.1210	14”	200
11	98.1211	16”	300
12	98.1212	18”	300
13	98.1213	20”	300
14	98.1214	24”	300
15	98.1215	26”	200
16	98.1216	28”	200
17	98.1218	30”	200
18	98.1219	32”	200
19	98.1220	34”	200
20	98.1221	40”	200
