Sensor Components
Socketweld Flp Reducer
Sensor Components
Socketweld Flp Reducer

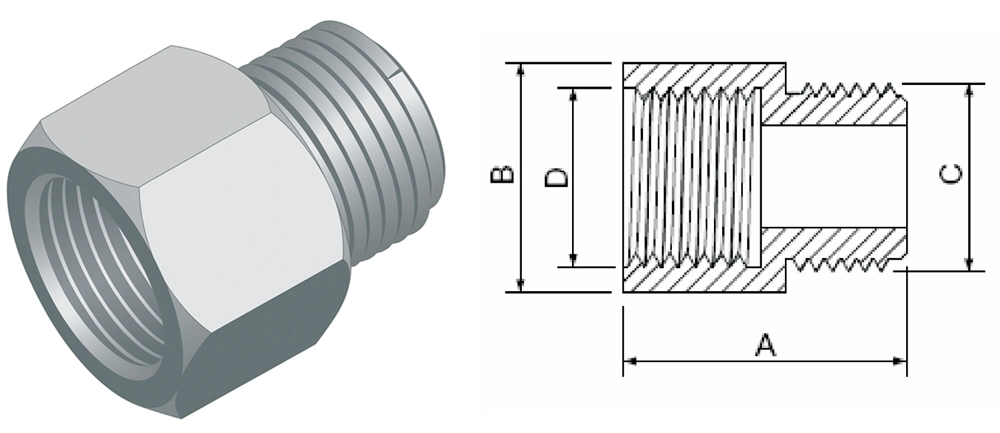

| Part No. | Description | A | B | C | D |
|---|---|---|---|---|---|
| KPC-R-14P-M-18P-F | 1/4”BSPPM x 1/8”BSPPF | 29.5 | 19 | 1/4 | 1/8 |
| KPC-R-38P-M-14P-F | 3/8”BSPPM x 1/4”BSPPF | 34.5 | 22 | 3/8 | 1/4 |
| KPC-R-12P-M-14P-F | 1/2”BSPPM x 1/4”BSPPF | 34.0 | 27 | 1/2 | 1/4 |
| KPC-R-12P-M-38P-F | 1/2”BSPPM x 3/8”BSPPF | 33.5 | 27 | 1/2 | 3/8 |
| KPC-R-12P-M-12P-F | 1/2”BSPPM x 1/2”BSPPF | 41.0 | 27 | 1/2 | 1/2 |
| KPC-R-34P-M-12P-F | 3/4”BSPPM x 1/2”BSPPF | 37.0 | 35 | 3/4 | 1/2 |
| KPC-R-1P-M-12P-F | 1”BSPPM x 1/2”BSPPF | 40.0 | 41 | 1 | 1/2 |
| KPC-R-12NPT-M-38NPT-F | 1/2”NPTM x 3/8”NPTF | 35.8 | 22 | 1/2 | 3/8 |
| KPC-R-M20-M-12P-F | M20M x 1/2”BSPPF | 38.0 | 27 | M20 | 1/2 |
| KPC-R-M24-M-12P-F | M24M x 1/2”BSPPF | 41.0 | 27 | M24 | 1/2 |
