Cam Lock Coupling | KPC

Flexible Pipe / Hoses

Cam Lock Couplings

Flexible Pipe / Hoses

Cam Lock Couplings

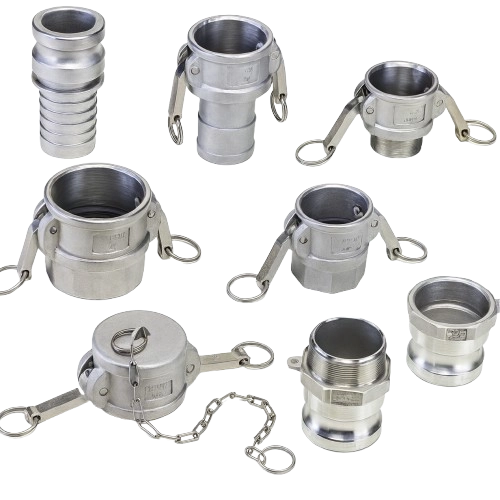

CLCW

Screenshot_168

Screenshot_167

Adapters

Part A (BSP Female Thread)

Size	1/2	3/4	1	1.1/4	1.1/2	2	2.1/2	3	4	5	6
DIM	13	19	25	32	40	50	65	75	100	125	150
A	13	20	24	28	35	45	55	72	97	121	145
B	37	41	46	55	58	62	89	71	80	85	89
C	26	35	38	47	56	69	82	101	126	150	182

Part F (BSP Male Thread)

Size	1/2	3/4	1	1.1/4	1.1/2	2	2.1/2	3	4	5	6
DIM	13	19	25	32	40	50	65	75	100	125	150
A	13	21	25	28	36	45	55	72	96	124	151
B	56	59	68	78	81	87	101	103	118	127	121
C	26	35	38	47	56	68	79	101	126	150	181
E	37	41	45	54	58	62	69	71	79	82	78

Part DP (Dust Plug)

Size	1/2	3/4	1	1.1/4	1.1/2	2	2.1/2	3	4	5	6
DIM	13	19	25	32	40	50	65	75	100	125	150
B	36	38	46	53	55	63	68	66	70	75	88
E	27	25	34	41	41	49	53	52	54	53	90

Couplers

Part D (BSP Female Thread)

Size	1/2	3/4	1	1.1/4	1.1/2	2	2.1/2	3	4	5	6
DIM	13	19	25	32	40	50	65	75	100	125	150
A	14	21	25	30	36	46	56	73	101	121	141
B	48	53	60	70	74	81	87	90	100	102	108
C	26	34	40	51	57	68	82	98	124	152	181
E	32	35	39	46	47	54	57	59	61	63	68
G	39	54	59	70	80	89	105	121	150	180	220

Part B (BSP Male Thread)

Size	1/2	3/4	1	1.1/4	1.1/2	2	2.1/2	3	4	5	6
DIM	13	19	25	32	40	50	65	75	100	125	150
A	14	19	23	30	36	47	60	72	100	123	150
B	47	54	62	68	72	79	87	91	99	103	113
G	39	54	60	80	81	89	105	90	148	175	220

Part DC (Dust Cap)

Size	1/2	3/4	1	1.1/4	1.1/2	2	2.1/2	3	4	5	6
DIM	13	19	25	32	40	50	65	75	100	125	150
B	43	46	52	60	63	70	73	78	90	105	113
G	39	54	39	70	80	89	105	121	150	180	220

Cam Lock Coupling

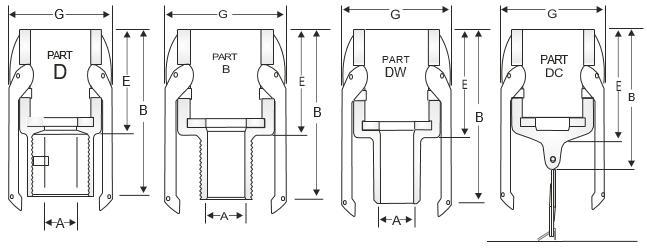

Screenshot_174

PART D (BSP Female Thread)

SIZE	1/2	3/4	1	1.1/4	1.1/2	2	2.1/2	3	4	5	6
DIM	13	19	25	32	40	50	65	75	100	125	150
A	14	21	25	30	36	46	56	73	101	121	141
B	48	53	60	70	74	81	87	90	100	102	108
C	26	34	40	51	57	68	82	98	124	152	181
E	32	35	39	46	47	54	57	59	61	63	68
G	39	54	59	70	80	89	105	121	150	180	220
Part DW – Weld End (same basic dimensions as Part D)

PART B (BSPT Male Thread)

SIZE	1/2	3/4	1	1.1/4	1.1/2	2	2.1/2	3	4	5	6
DIM	13	19	25	32	40	50	65	75	100	125	150
A	14	19	23	30	36	47	60	72	100	123	150
B	47	54	62	68	72	79	87	91	99	103	113
G	39	54	60	80	81	89	105	90	148	175	220

PART DC (Dust Cap)

SIZE	1/2	3/4	1	1.1/4	1.1/2	2	2.1/2	3	4	5	6
DIM	13	19	25	32	40	50	65	75	100	125	150
B	43	46	52	60	63	70	73	78	90	105	113
G	39	54	39	70	80	89	105	121	150	180	220
